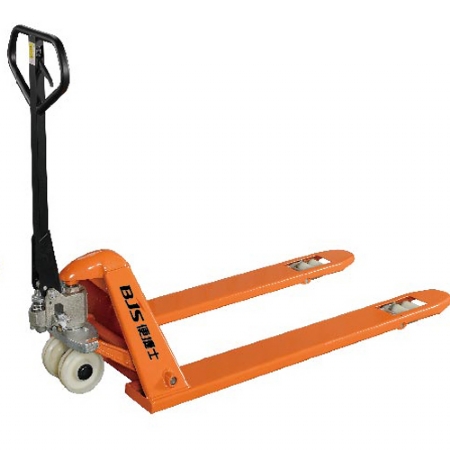

Low put car |
|
|
■ Forging rocker arm with 45 carbon steel, greatly improve flex resistance ■ Not easy to rollover body ,Max. turned 130 degrees only. ■ Good appearance is different with others. ■ Long time overload is not easy to deformation ■ With imported seal chrome plated piston to improve the service life |
|
Item | 低放型 | Capacity Q | (kg) | 2000 | Min.fork height H | (mm) | 52/65 | Max.fork height HI | (mm) | 142 /155 | Steering wheel | (mm) | 150X50 | Load roller | (mm) | 50X70 / 60X70 | Size of fork ExS | (mm) | 160 | Width overall forks B | (mm) | 550 / 685 | Fork length L | (mm) | 1150 /1220 | Net weight | (kg) | 75 |
|
|
|
|
