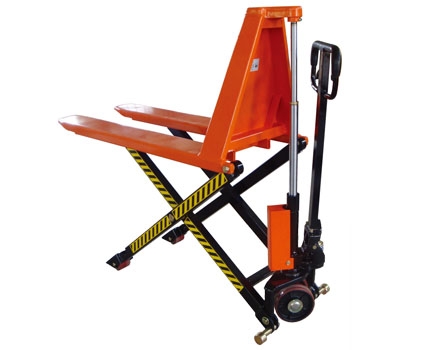

| High-lift Pallet Truck with Double Pistons |
|
| |
■ Combination of handling and work platform.
■ Dual piston rod structure with lower frame height.
■ Long time overload is not easy to deformation
■ Pump body overload protection down smoothly use safety
■ Frame design strong capacity is strong
■ Steady lifting falling ,speed can be control |
| |
Item | BIC 1.0T | BIC 1.5T | BIC 2.0T | Capacity Q | (kg) | 1000 | 1500 | 2000 | Width overall forks B | (mm) | 540 / 680 | 540 / 680 | 540 / 680 | Fork length L | (mm) | 1150 | 1150 | 1150 | Min.fork height H | (mm) | 85 | 85 | 85 | Max.fork height H1 | (mm) | 800 | 800 | 800 | Steering wheel | (mm) | 78X60 | 78X60 | 78X60 | Load roller | (mm) | 180X50 | 180X50 | 180X50 | Net weight | (kg) | 110 | 110 | 110 |
|
|
|
|
